1200°C Silicon Carbide Deep Groove Ball Bearing: 6018-SCF

1200°C Silicon Carbide Deep Groove Ball Bearing: 6018-SCF

Deep Groove, Full Complement, Single Row, High Temperature 1200 °C SiC Ball Bearing
$2,628.75
This product has a minimum quantity of 5
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

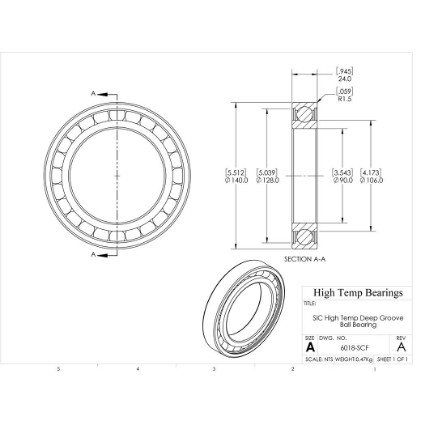

CAD
Specifications:
Attribute nameAttribute value
Construction2192F Open
Bore (mm)90
D (mm)140
B (mm)24
d1 (mm)106
D2 (mm)128
C (lb)2617
C0 (lb)2235
Nmax (RPM)2352
Weight(lbs)1.03
Code101405
PackageQTY1
UOMEA
C (kN)11.64
C0 (kN)9.94
Ra (mm)1.5
Da (mm)133
damin (mm)97
kr25
ka0.25
fo16
r (mm)1.5
Clearance0.0005"
Tmax (F)2192
Tmin (F)-112
DutyHigh Temperature
SealsNone
SeriesSiC
