Naked Silicon Carbide Deep Groove Ceramic Ball Bearing: 6018-SC

Naked Silicon Carbide Deep Groove Ceramic Ball Bearing: 6018-SC

Deep Groove, Single Row, Ceramic, Naked, SiC
$2,630.81
This product has a minimum quantity of 3

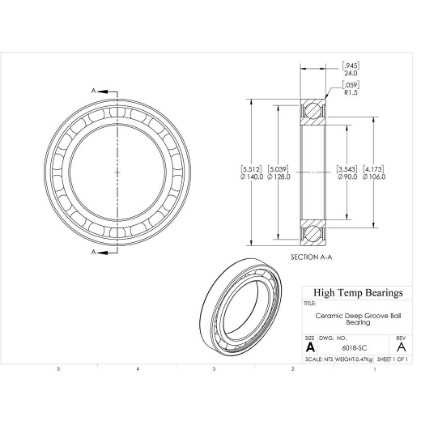

CAD
Specifications:
Attribute nameAttribute value
SeriesSiC
SealsNone
Bore (mm)90
D (mm)140
B (mm)24
d1 (mm)106
D2 (mm)128
C (lb)2617
C0 (lb)2235
Nmax (RPM)3360
Weight(lbs)1.03
Code101403
PackageQTY1
UOMEA
C (kN)11.64
C0 (kN)9.94
Ra (mm)1.5
Da (mm)133
damin (mm)97
kr25
ka0.25
fo16
r (mm)1.5
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open
DutyCeramic
