Sealed Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6017-ZO2RS

Sealed Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6017-ZO2RS

Deep Groove, Single Row, Ceramic, Sealed, ZrO2
$1,247.39
This product has a minimum quantity of 3

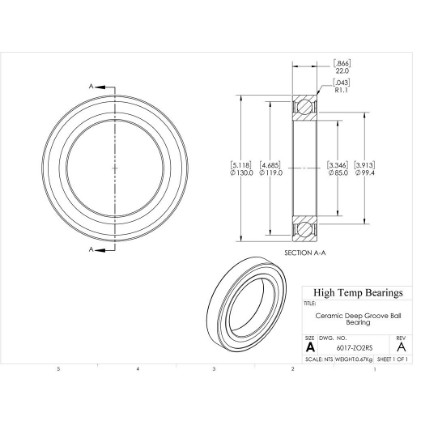

CAD
Specifications:
Attribute nameAttribute value
SeriesZrO2
SealsSeals
Bore (mm)85
D (mm)130
B (mm)22
d1 (mm)99.4
D2 (mm)119
C (lb)3338
C0 (lb)2907
Nmax (RPM)3600
Weight(lbs)1.49
Code101397
PackageQTY1
UOMEA
C (kN)14.85
C0 (kN)12.93
Ra (mm)1
Da (mm)123
damin (mm)92
kr25
ka0.25
fo16
r (mm)1.1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
