800°C Silicon Nitride Deep Groove Ball Bearing: 6017-SNF

800°C Silicon Nitride Deep Groove Ball Bearing: 6017-SNF

Deep Groove, Full Complement, Single Row, High Temp 800 C,Si3N4
$1,822.33
This product has a minimum quantity of 3

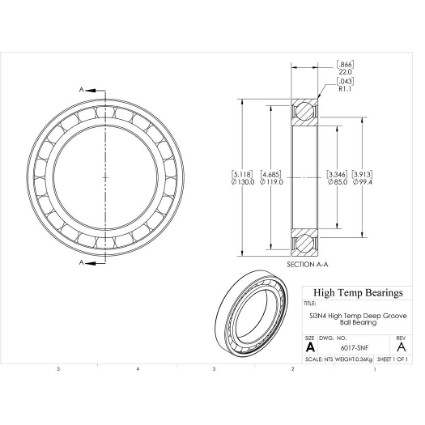

CAD
Specifications:
Attribute nameAttribute value
Construction1472F Open
Bore (mm)85
D (mm)130
B (mm)22
d1 (mm)99.4
D2 (mm)119
C (lb)2782
C0 (lb)2422
Nmax (RPM)2940
Weight(lbs)0.79
Code101395
PackageQTY1
UOMEA
SeriesSi3N4
C (kN)12.375
C0 (kN)10.775
Ra (mm)1
Da (mm)123
damin (mm)92
kr25
ka0.25
fo16
r (mm)1.1
SealsNone
Clearance0.0005"
Tmax (F)1472
Tmin (F)-112
DutyHigh Temperature
