Open Silicon Nitride Deep Groove Ceramic Ball Bearing: 6017-SN

Open Silicon Nitride Deep Groove Ceramic Ball Bearing: 6017-SN

Deep Groove, Single Row, Ceramic, Open Si3N4 Ball Bearing
$1,634.95
This product has a minimum quantity of 3
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

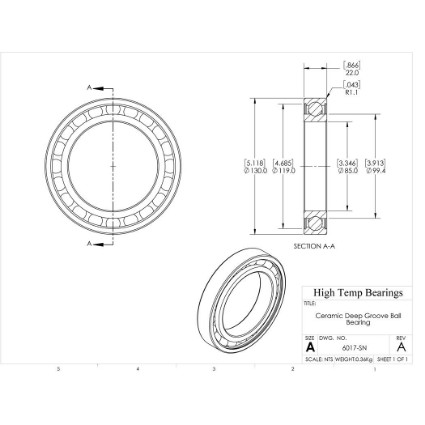

CAD
Specifications:
Attribute nameAttribute value
SeriesSi3N4
SealsNone
Bore (mm)85
D (mm)130
B (mm)22
d1 (mm)99.4
D2 (mm)119
C (lb)2782
C0 (lb)2422
Nmax (RPM)4200
Weight(lbs)0.79
Code101393
PackageQTY1
UOMEA
C (kN)12.375
C0 (kN)10.775
Ra (mm)1
Da (mm)123
damin (mm)92
kr25
ka0.25
fo16
r (mm)1.1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open Ceramic
DutyCeramic
