1200°C Silicon Carbide Deep Groove Ball Bearing: 6017-SCF

1200°C Silicon Carbide Deep Groove Ball Bearing: 6017-SCF

Deep Groove, Full Complement, Single Row, High Temp 1200 C,SiC
$1,914.73
This product has a minimum quantity of 5

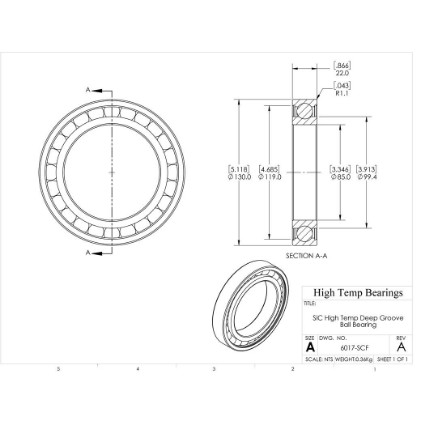

CAD
Specifications:
Attribute nameAttribute value
Construction2192F Open
Bore (mm)85
D (mm)130
B (mm)22
d1 (mm)99.4
D2 (mm)119
C (lb)2226
C0 (lb)1938
Nmax (RPM)2520
Weight(lbs)0.79
Code101392
PackageQTY1
UOMEA
SeriesSiC
C (kN)9.9
C0 (kN)8.62
Ra (mm)1
Da (mm)123
damin (mm)92
kr25
ka0.25
fo16
r (mm)1.1
SealsNone
Clearance0.0005"
Tmax (F)2192
Tmin (F)-112
DutyHigh Temperature
