Open Silicon Carbide Deep Groove Ceramic Ball Bearing: 6017-SC

Open Silicon Carbide Deep Groove Ceramic Ball Bearing: 6017-SC

Deep Groove, Single Row, Ceramic, Open SiC Ball Bearing
$2,307.42
This product has a minimum quantity of 3
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

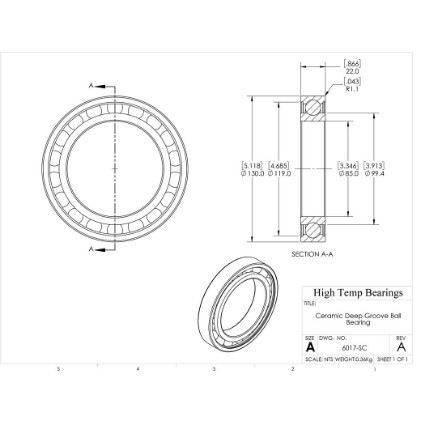

CAD
Specifications:
Attribute nameAttribute value
SeriesSiC
SealsNone
Bore (mm)85
D (mm)130
B (mm)22
d1 (mm)99.4
D2 (mm)119
C (lb)2226
C0 (lb)1938
Nmax (RPM)3600
Weight(lbs)0.79
Code101390
PackageQTY1
UOMEA
C (kN)9.9
C0 (kN)8.62
Ra (mm)1
Da (mm)123
damin (mm)92
kr25
ka0.25
fo16
r (mm)1.1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open Ceramic
DutyCeramic
