400°C Zirconium Oxide Deep Groove Ball Bearing: 6016-ZOF

400°C Zirconium Oxide Deep Groove Ball Bearing: 6016-ZOF

Deep Groove, Full Complement, Single Row, High Temp 400 C, ZrO2
$664.76
This product has a minimum quantity of 3

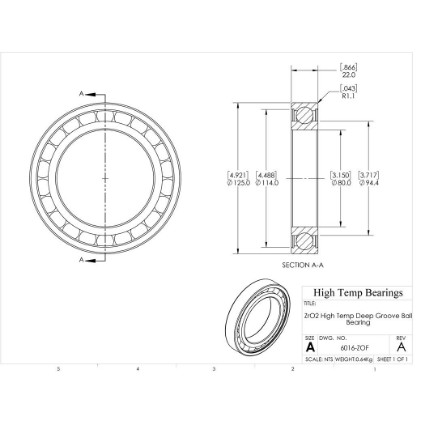

CAD
Specifications:
Attribute nameAttribute value
Construction752F Open
Bore (mm)80
D (mm)125
B (mm)22
d1 (mm)94.4
D2 (mm)114
C (lb)3210
C0 (lb)2684
Nmax (RPM)2646
Weight(lbs)1.41
Code101384
PackageQTY1
UOMEA
SeriesZrO2
C (kN)14.28
C0 (kN)11.94
Ra (mm)1
Da (mm)119
damin (mm)86
kr25
ka0.25
fo16
r (mm)1.1
SealsNone
Clearance0.0005"
Tmax (F)752
Tmin (F)-112
DutyHigh Temperature
