Sealed Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6016-ZO2RS

Sealed Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6016-ZO2RS

Deep Groove, Single Row, Ceramic, Sealed ZrO2 Ball Bearing
$741.76
This product has a minimum quantity of 3
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

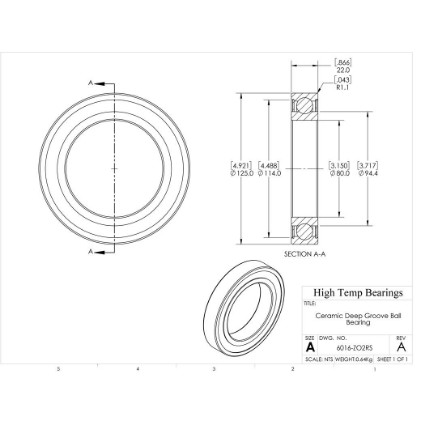

CAD
Specifications:
Attribute nameAttribute value
SeriesZrO2
SealsSeals
Bore (mm)80
D (mm)125
B (mm)22
d1 (mm)94.4
D2 (mm)114
C (lb)3210
C0 (lb)2684
Nmax (RPM)3780
Weight(lbs)1.41
Code101383
PackageQTY1
UOMEA
C (kN)14.28
C0 (kN)11.94
Ra (mm)1
Da (mm)119
damin (mm)86
kr25
ka0.25
fo16
r (mm)1.1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
