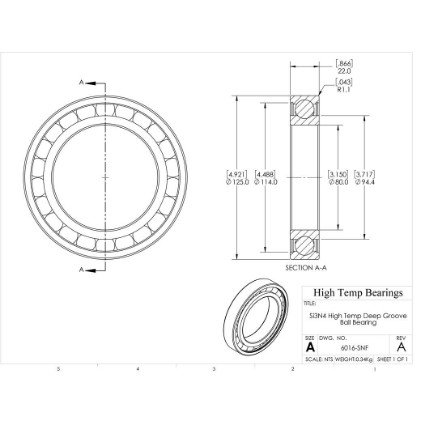

800°C Silicon Nitride Deep Groove Ball Bearing: 6016-SNF

800°C Silicon Nitride Deep Groove Ball Bearing: 6016-SNF

Deep Groove, Full Complement, Single Row, High Temp 800 C,Si3N4
$1,130.10
This product has a minimum quantity of 3
CAD
Specifications:
Attribute nameAttribute value
Construction1472F Open
Bore (mm)80
D (mm)125
B (mm)22
d1 (mm)94.4
D2 (mm)114
C (lb)2675
C0 (lb)2237
Nmax (RPM)3087
Weight(lbs)0.75
Code101381
PackageQTY1
UOMEA
SeriesSi3N4
C (kN)11.9
C0 (kN)9.95
Ra (mm)1
Da (mm)119
damin (mm)86
kr25
ka0.25
fo16
r (mm)1.1
SealsNone
Clearance0.0005"
Tmax (F)1472
Tmin (F)-112
DutyHigh Temperature
