Open Silicon Nitride Deep Groove Ceramic Ball Bearing: 6016-SN

Open Silicon Nitride Deep Groove Ceramic Ball Bearing: 6016-SN

Deep Groove, Single Row, Ceramic, Open Si3N4 Ball Bearing
$998.43
This product has a minimum quantity of 3
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

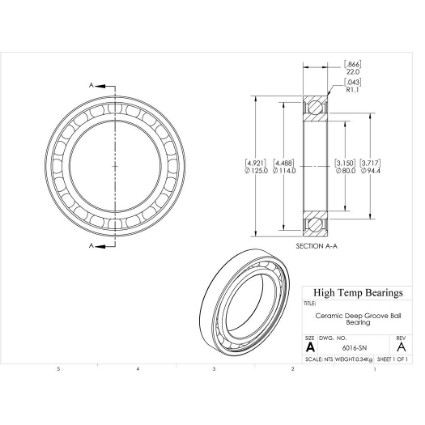

CAD
Specifications:
Attribute nameAttribute value
SeriesSi3N4
SealsNone
Bore (mm)80
D (mm)125
B (mm)22
d1 (mm)94.4
D2 (mm)114
C (lb)2675
C0 (lb)2237
Nmax (RPM)4410
Weight(lbs)0.75
Code101379
PackageQTY1
UOMEA
C (kN)11.9
C0 (kN)9.95
Ra (mm)1
Da (mm)119
damin (mm)86
kr25
ka0.25
fo16
r (mm)1.1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open Ceramic
DutyCeramic
