1200°C Silicon Carbide Deep Groove Ball Bearing: 6016-SCF

1200°C Silicon Carbide Deep Groove Ball Bearing: 6016-SCF

Deep Groove, Full Complement, Single Row, High Temp 1200 C,SiC
$1,196.57
This product has a minimum quantity of 5

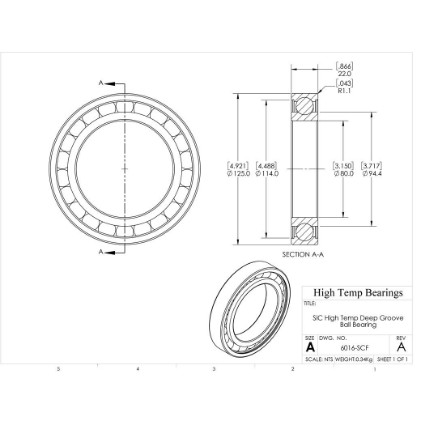

CAD
Specifications:
Attribute nameAttribute value
Construction2192F Open
Bore (mm)80
D (mm)125
B (mm)22
d1 (mm)94.4
D2 (mm)114
C (lb)2140
C0 (lb)1789
Nmax (RPM)2646
Weight(lbs)0.75
Code101378
PackageQTY1
UOMEA
C (kN)9.52
C0 (kN)7.96
Ra (mm)1
Da (mm)119
damin (mm)86
kr25
ka0.25
fo16
r (mm)1.1
Clearance0.0005"
Tmax (F)2192
Tmin (F)-112
DutyHigh Temperature
SealsNone
SeriesSiC
