Sealed Silicon Carbide Deep Groove Ceramic Ball Bearing: 6016-SC2RS

Sealed Silicon Carbide Deep Groove Ceramic Ball Bearing: 6016-SC2RS

Deep Groove, Single Row, Ceramic, Sealed SiC Ball Bearing
$2,369.98
This product has a minimum quantity of 3
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

CAD
Specifications:
Description
Sealed units are protected from liquids, vapors, and fine dust, have excellent grease retention but have increased friction compared to shielded and open bearings. Silicon Carbide is one of the lightest and hardest ceramic materials. It has exceptional thermal conductivity, resistance to acids, and low thermal expansion. It is an excellent material to use if exposure to particle wear is a primary concern; it exhibits excellent erosion and abrasive resistance. Silicon carbide is not attacked by any acids, alkalis, or molten salts up to 800°C. In the air, above 2192 °F (1200 °C), SiC begins to form a silicon oxide coating that is protective of the material but undesirable for precision bearings, limiting the material's maximum use temperature as a bearing. The high thermal conductivity, coupled with low thermal expansion and high strength, provide exceptional resistance to thermal shock. It is a semiconductor. Dielectric performance should be verified if electrical isolation by the bearing is required.
Attribute nameAttribute value
Product Information
Attribute nameAttribute value
Code101377
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
SealsSeals
DutyCeramic
Construction482F Seals Ceramic
SeriesSiC
Shaft Size80mm
MaterialSiC

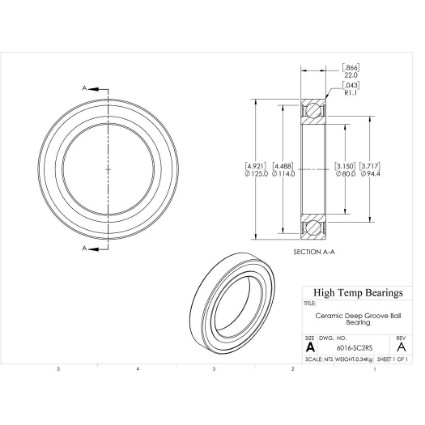

Dimensions
Attribute nameAttribute value
Bore (mm)80
D (mm)125
B (mm)22
r (mm)1.1
D2 (mm)114
d1 (mm)94.4
Abutment Dimensions
Attribute nameAttribute value
Ra (mm)1
Da (mm)119
damin (mm)86
Calculation Data
Attribute nameAttribute value
Nmax (RPM)Limiting speed3780
krMinimum radial load factor25
kaMinimum axial load factor0.25
foCalculation factor16
C (lb)Dynamic load capacity2140
C0 (lb)Static load capacity1789
Mass
Attribute nameAttribute value
Weight(lbs)0.75
Tolerance Class
Attribute nameAttribute value
Clearance0.0005"
Safe Loads
Attribute nameAttribute value
Tmax (F)482
Tmin (F)-94
