Sealed Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6015-ZO2RS

Sealed Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6015-ZO2RS

Deep Groove, Single Row, Ceramic, Sealed, ZrO2
$649.36
This product has a minimum quantity of 3

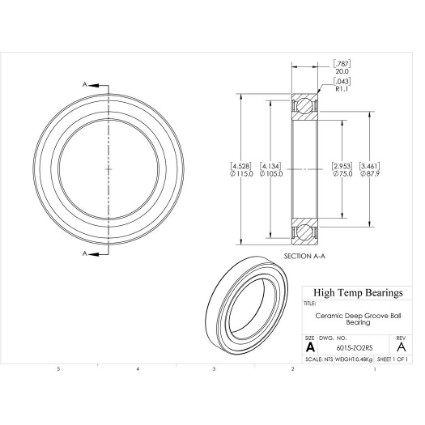

CAD
Specifications:
Attribute nameAttribute value
SeriesZrO2
SealsSeals
Bore (mm)75
D (mm)115
B (mm)20
d1 (mm)87.9
D2 (mm)105
C (lb)2671
C0 (lb)2259
Nmax (RPM)4020
Weight(lbs)1.06
Code101368
PackageQTY1
UOMEA
C (kN)11.88
C0 (kN)10.05
Ra (mm)1
Da (mm)109
damin (mm)81
kr25
ka0.25
fo16
r (mm)1.1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
