800°C Silicon Nitride Deep Groove Ball Bearing: 6015-SNF

800°C Silicon Nitride Deep Groove Ball Bearing: 6015-SNF

Deep Groove, Full Complement, Single Row, High Temperature 800 °C Si3N4 Ball Bearing
$1,000.99
This product has a minimum quantity of 3
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

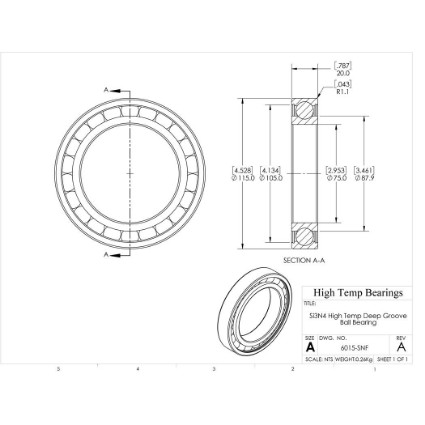

CAD
Specifications:
Attribute nameAttribute value
Construction1472F Open
Bore (mm)75
D (mm)115
B (mm)20
d1 (mm)87.9
D2 (mm)105
C (lb)2226
C0 (lb)1883
Nmax (RPM)3283
Weight(lbs)0.56
Code101366
PackageQTY1
UOMEA
C (kN)9.9
C0 (kN)8.375
Ra (mm)1
Da (mm)109
damin (mm)81
kr25
ka0.25
fo16
r (mm)1.1
Clearance0.0005"
Tmax (F)1472
Tmin (F)-112
DutyHigh Temperature
SealsNone
SeriesSi3N4
