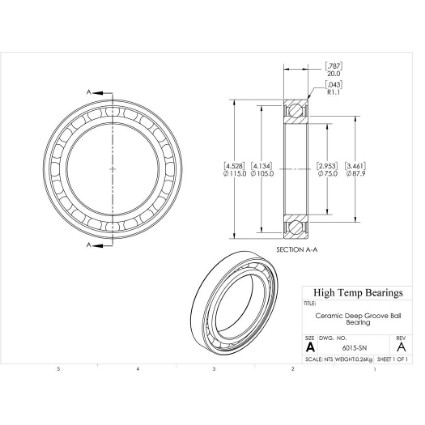

Open Silicon Nitride Deep Groove Ceramic Ball Bearing: 6015-SN

Open Silicon Nitride Deep Groove Ceramic Ball Bearing: 6015-SN

Deep Groove, Single Row, Ceramic, Open, Si3N4
$849.56
This product has a minimum quantity of 3
CAD
Specifications:
Attribute nameAttribute value
SeriesSi3N4
SealsNone
Bore (mm)75
D (mm)115
B (mm)20
d1 (mm)87.9
D2 (mm)105
C (lb)2226
C0 (lb)1883
Nmax (RPM)4690
Weight(lbs)0.56
Code101364
PackageQTY1
UOMEA
C (kN)9.9
C0 (kN)8.375
Ra (mm)1
Da (mm)109
damin (mm)81
kr25
ka0.25
fo16
r (mm)1.1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open Ceramic
DutyCeramic
