1200°C Silicon Carbide Deep Groove Ball Bearing: 6015-SCF

1200°C Silicon Carbide Deep Groove Ball Bearing: 6015-SCF

Deep Groove, Full Complement, Single Row, High Temp 1200 C,SiC
$1,061.30
This product has a minimum quantity of 5

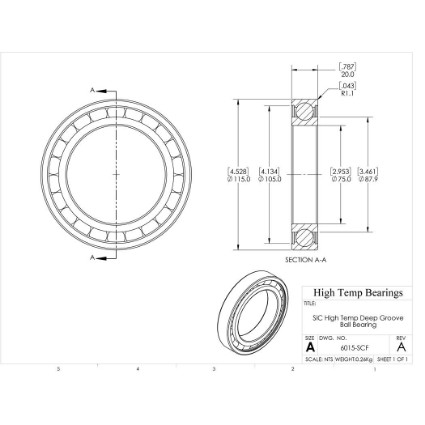

CAD
Specifications:
Attribute nameAttribute value
Construction2192F Open
Bore (mm)75
D (mm)115
B (mm)20
d1 (mm)87.9
D2 (mm)105
C (lb)1780
C0 (lb)1506
Nmax (RPM)2814
Weight(lbs)0.56
Code101363
PackageQTY1
UOMEA
SeriesSiC
C (kN)7.92
C0 (kN)6.7
Ra (mm)1
Da (mm)109
damin (mm)81
kr25
ka0.25
fo16
r (mm)1.1
SealsNone
Clearance0.0005"
Tmax (F)2192
Tmin (F)-112
DutyHigh Temperature
