400°C Zirconium Oxide Deep Groove Ball Bearing: 6014-ZOF

400°C Zirconium Oxide Deep Groove Ball Bearing: 6014-ZOF

Deep Groove, Full Complement, Single Row, High Temperature 400 °C ZrO2 Ball Bearing
$500.50
This product has a minimum quantity of 3
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

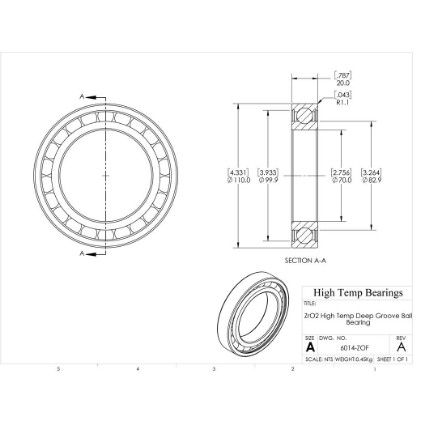

CAD
Specifications:
Attribute nameAttribute value
Construction752F Open
Bore (mm)70
D (mm)110
B (mm)20
d1 (mm)82.9
D2 (mm)99.9
C (lb)2570
C0 (lb)2084
Nmax (RPM)2982
Weight(lbs)0.99
Code270031
PackageQTY1
UOMEA
C (kN)11.43
C0 (kN)9.27
Ra (mm)1
Da (mm)104
damin (mm)76
kr25
ka0.25
fo16
r (mm)1.1
Clearance0.0005"
Tmax (F)752
Tmin (F)-112
DutyHigh Temperature
SealsNone
SeriesZrO2
