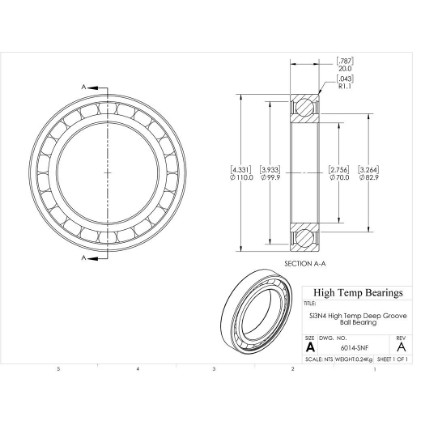

800°C Silicon Nitride Deep Groove Ball Bearing: 6014-SNF

800°C Silicon Nitride Deep Groove Ball Bearing: 6014-SNF

Deep Groove, Full Complement, Single Row, High Temp 800 C,Si3N4
$850.84
This product has a minimum quantity of 3
CAD
Specifications:
Attribute nameAttribute value
Construction1472F Open
Bore (mm)70
D (mm)110
B (mm)20
d1 (mm)82.9
D2 (mm)99.9
C (lb)2141
C0 (lb)1737
Nmax (RPM)3479
Weight(lbs)0.53
Code270030
PackageQTY1
UOMEA
C (kN)9.525
C0 (kN)7.725
Ra (mm)1
Da (mm)104
damin (mm)76
kr25
ka0.25
fo16
r (mm)1.1
Clearance0.0005"
Tmax (F)1472
Tmin (F)-112
DutyHigh Temperature
SealsNone
SeriesSi3N4
