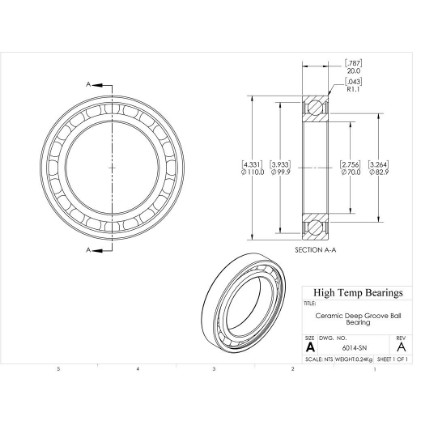

Open Silicon Nitride Deep Groove Ceramic Ball Bearing: 6014-SN

Open Silicon Nitride Deep Groove Ceramic Ball Bearing: 6014-SN

Deep Groove, Single Row, Ceramic, Open, Si3N4
$816.20
This product has a minimum quantity of 3
CAD
Specifications:
Attribute nameAttribute value
SeriesSi3N4
SealsNone
Bore (mm)70
D (mm)110
B (mm)20
d1 (mm)82.9
D2 (mm)99.9
C (lb)2141
C0 (lb)1737
Nmax (RPM)4970
Weight(lbs)0.53
Code101352
PackageQTY1
UOMEA
C (kN)9.525
C0 (kN)7.725
Ra (mm)1
Da (mm)104
damin (mm)76
kr25
ka0.25
fo16
r (mm)1.1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open Ceramic
DutyCeramic
