400°C Zirconium Oxide Deep Groove Ball Bearing: 6013-ZOF

400°C Zirconium Oxide Deep Groove Ball Bearing: 6013-ZOF

Deep Groove, Full Complement, Single Row, High Temp 400 C, ZrO2
$479.96
This product has a minimum quantity of 3

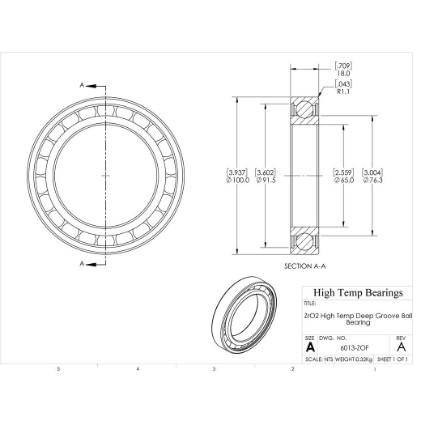

CAD
Specifications:
Attribute nameAttribute value
Construction752F Open
Bore (mm)65
D (mm)100
B (mm)18
d1 (mm)76.3
D2 (mm)91.5
C (lb)2057
C0 (lb)1700
Nmax (RPM)3360
Weight(lbs)0.71
Code101343
PackageQTY1
UOMEA
SeriesZrO2
C (kN)9.15
C0 (kN)7.56
Ra (mm)1
Da (mm)94
damin (mm)71
kr25
ka0.25
fo16
r (mm)1.1
SealsNone
Clearance0.0005"
Tmax (F)752
Tmin (F)-112
DutyHigh Temperature
