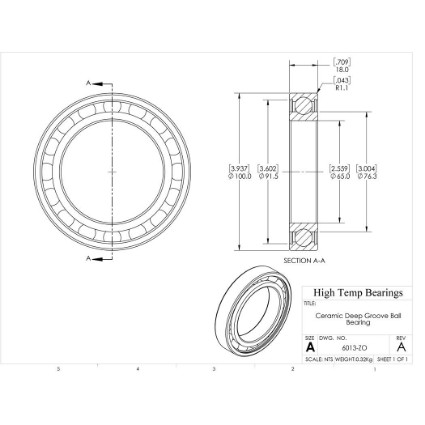

Naked Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6013-ZO

Naked Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6013-ZO

Deep Groove, Single Row, Ceramic, Naked, ZrO2
$482.53
CAD
Specifications:
Attribute nameAttribute value
SeriesZrO2
SealsNone
Bore (mm)65
D (mm)100
B (mm)18
d1 (mm)76.3
D2 (mm)91.5
C (lb)2057
C0 (lb)1700
Nmax (RPM)4800
Weight(lbs)0.71
Code101341
PackageQTY1
UOMEA
C (kN)9.15
C0 (kN)7.56
Ra (mm)1
Da (mm)94
damin (mm)71
kr25
ka0.25
fo16
r (mm)1.1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open
DutyCeramic
