800°C Silicon Nitride Deep Groove Ball Bearing: 6013-SNF

800°C Silicon Nitride Deep Groove Ball Bearing: 6013-SNF

Deep Groove, Full Complement, Single Row, High Temperature 800 °C Si3N4 Ball Bearing
$757.16
This product has a minimum quantity of 3
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

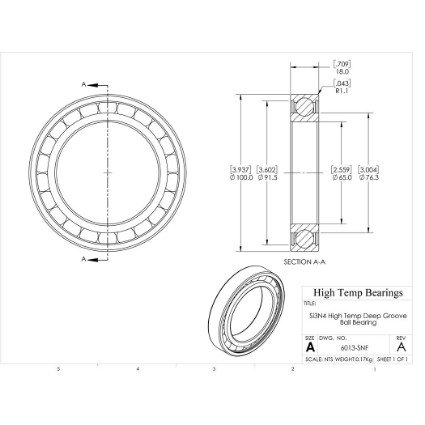

CAD
Specifications:
Attribute nameAttribute value
Construction1472F Open
Bore (mm)65
D (mm)100
B (mm)18
d1 (mm)76.3
D2 (mm)91.5
C (lb)1714
C0 (lb)1416
Nmax (RPM)3920
Weight(lbs)0.38
Code270028
PackageQTY1
UOMEA
C (kN)7.625
C0 (kN)6.3
Ra (mm)1
Da (mm)94
damin (mm)71
kr25
ka0.25
fo16
r (mm)1.1
Clearance0.0005"
Tmax (F)1472
Tmin (F)-112
DutyHigh Temperature
SealsNone
SeriesSi3N4
