Naked Silicon Nitride Deep Groove Ceramic Ball Bearing: 6013-SN

Naked Silicon Nitride Deep Groove Ceramic Ball Bearing: 6013-SN

Deep Groove, Single Row, Ceramic, Naked, Si3N4
$757.16
This product has a minimum quantity of 3

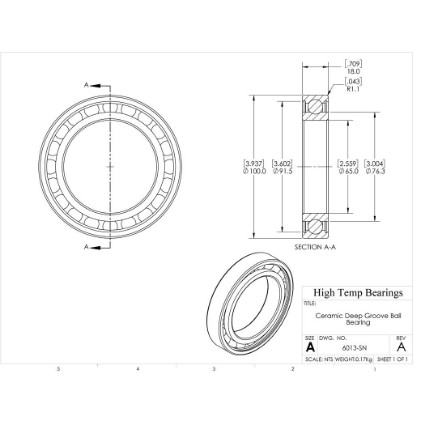

CAD
Specifications:
Attribute nameAttribute value
SeriesSi3N4
SealsNone
Bore (mm)65
D (mm)100
B (mm)18
d1 (mm)76.3
D2 (mm)91.5
C (lb)1714
C0 (lb)1416
Nmax (RPM)5600
Weight(lbs)0.38
Code101339
PackageQTY1
UOMEA
C (kN)7.625
C0 (kN)6.3
Ra (mm)1
Da (mm)94
damin (mm)71
kr25
ka0.25
fo16
r (mm)1.1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open
DutyCeramic
