1200°C Silicon Carbide Deep Groove Ball Bearing: 6013-SCF

1200°C Silicon Carbide Deep Groove Ball Bearing: 6013-SCF

Deep Groove, Full Complement, Single Row, High Temp 1200 C,SiC
$886.78
This product has a minimum quantity of 5

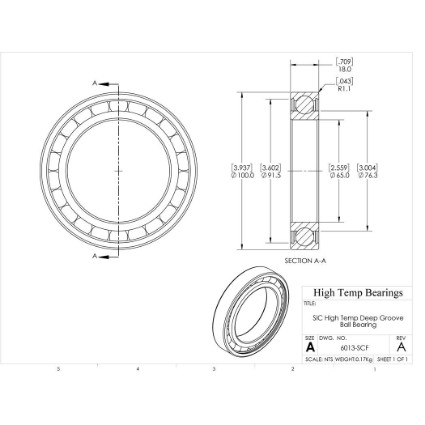

CAD
Specifications:
Attribute nameAttribute value
Construction2192F Open
Bore (mm)65
D (mm)100
B (mm)18
d1 (mm)76.3
D2 (mm)91.5
C (lb)1371
C0 (lb)1133
Nmax (RPM)3360
Weight(lbs)0.38
Code101338
PackageQTY1
UOMEA
C (kN)6.1
C0 (kN)5.04
Ra (mm)1
Da (mm)94
damin (mm)71
kr25
ka0.25
fo16
r (mm)1.1
Clearance0.0005"
Tmax (F)2192
Tmin (F)-112
DutyHigh Temperature
SealsNone
SeriesSiC
