Sealed Silicon Carbide Deep Groove Ceramic Ball Bearing: 6013-SC2RS

Sealed Silicon Carbide Deep Groove Ceramic Ball Bearing: 6013-SC2RS

Deep Groove, Single Row, Ceramic, Sealed, SiC
$995.86
This product has a minimum quantity of 3

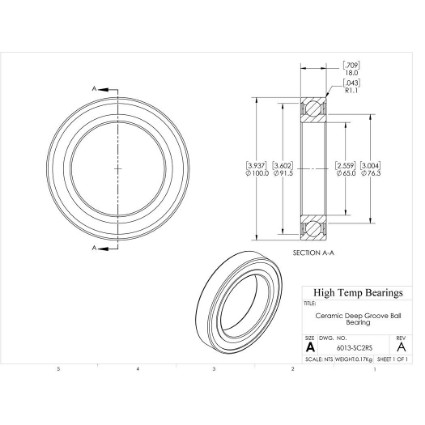

CAD
Specifications:
Attribute nameAttribute value
SeriesSiC
SealsSeals
Bore (mm)65
D (mm)100
B (mm)18
d1 (mm)76.3
D2 (mm)91.5
C (lb)1371
C0 (lb)1133
Nmax (RPM)4800
Weight(lbs)0.38
Code101337
PackageQTY1
UOMEA
C (kN)6.1
C0 (kN)5.04
Ra (mm)1
Da (mm)94
damin (mm)71
kr25
ka0.25
fo16
r (mm)1.1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
