Open Silicon Nitride Deep Groove Ceramic Ball Bearing: 6012-SN

Open Silicon Nitride Deep Groove Ceramic Ball Bearing: 6012-SN

Deep Groove, Single Row, Ceramic, Open Si3N4 Ball Bearing
$562.10
This product has a minimum quantity of 3
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

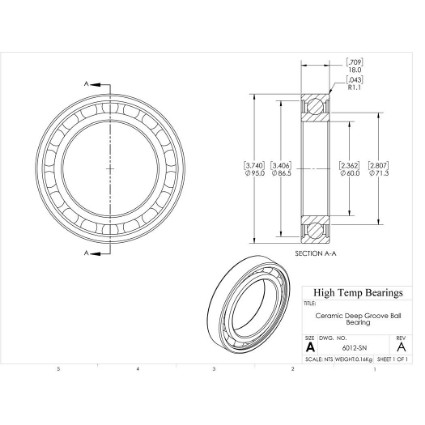

CAD
Specifications:
Attribute nameAttribute value
SeriesSi3N4
SealsNone
Bore (mm)60
D (mm)95
B (mm)18
d1 (mm)71.3
D2 (mm)86.5
C (lb)1652
C0 (lb)1304
Nmax (RPM)5950
Weight(lbs)0.35
Code101327
PackageQTY1
UOMEA
C (kN)7.35
C0 (kN)5.8
Ra (mm)1
Da (mm)89
damin (mm)66
kr25
ka0.25
fo16
r (mm)1.1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open Ceramic
DutyCeramic
