1200°C Silicon Carbide Deep Groove Ball Bearing: 6012-SCF

1200°C Silicon Carbide Deep Groove Ball Bearing: 6012-SCF

Deep Groove, Full Complement, Single Row, High Temperature 1200 °C SiC Ball Bearing
$522.06
This product has a minimum quantity of 5
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

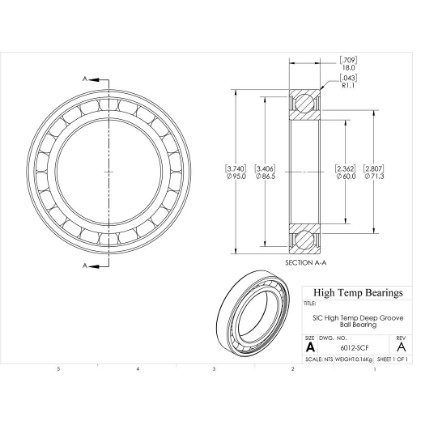

CAD
Specifications:
Attribute nameAttribute value
Construction2192F Open
Bore (mm)60
D (mm)95
B (mm)18
d1 (mm)71.3
D2 (mm)86.5
C (lb)1322
C0 (lb)1322
Nmax (RPM)3570
Weight(lbs)0.35
Code270024
PackageQTY1
UOMEA
C (kN)5.88
C0 (kN)5.88
Ra (mm)1
Da (mm)89
damin (mm)66
kr25
ka0.25
fo16
r (mm)1.1
Clearance0.0005"
Tmax (F)2192
Tmin (F)-112
DutyHigh Temperature
SealsNone
SeriesSiC
