Sealed Silicon Carbide Deep Groove Ceramic Ball Bearing: 6012-SC2RS

Sealed Silicon Carbide Deep Groove Ceramic Ball Bearing: 6012-SC2RS

Deep Groove, Single Row, Ceramic, Sealed, SiC
$682.73
This product has a minimum quantity of 3

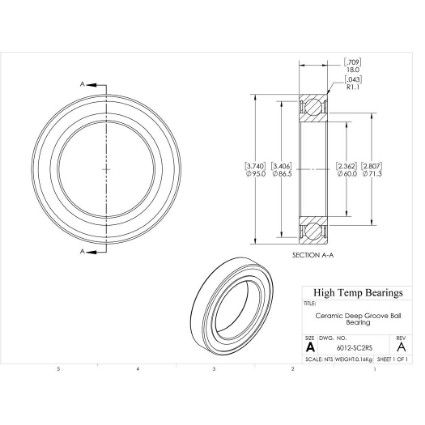

CAD
Specifications:
Attribute nameAttribute value
SeriesSiC
SealsSeals
Bore (mm)60
D (mm)95
B (mm)18
d1 (mm)71.3
D2 (mm)86.5
C (lb)1322
C0 (lb)1322
Nmax (RPM)5100
Weight(lbs)0.35
Code101326
PackageQTY1
UOMEA
C (kN)5.88
C0 (kN)5.88
Ra (mm)1
Da (mm)89
damin (mm)66
kr25
ka0.25
fo16
r (mm)1.1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
