400°C Zirconium Oxide Deep Groove Ball Bearing: 6011-ZOF

400°C Zirconium Oxide Deep Groove Ball Bearing: 6011-ZOF

Deep Groove, Full Complement, Single Row, High Temperature 400 °C ZrO2 Ball Bearing
$279.77
This product has a minimum quantity of 3
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

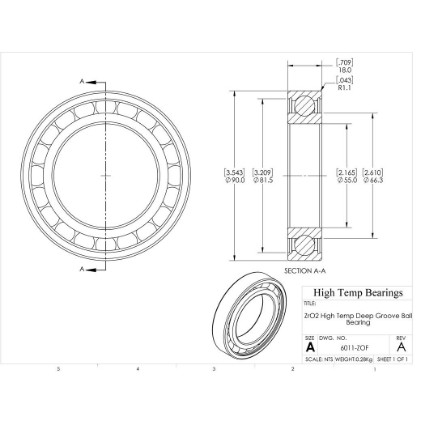

CAD
Specifications:
Attribute nameAttribute value
Construction752F Open
Bore (mm)55
D (mm)90
B (mm)18
d1 (mm)66.3
D2 (mm)81.5
C (lb)1909
C0 (lb)1430
Nmax (RPM)3780
Weight(lbs)0.62
Code101319
PackageQTY1
UOMEA
C (kN)8.49
C0 (kN)6.36
Ra (mm)1
Da (mm)84
damin (mm)61
kr25
ka0.25
fo15
r (mm)1.1
Clearance0.0005"
Tmax (F)752
Tmin (F)-112
DutyHigh Temperature
SealsNone
SeriesZrO2
