Naked Silicon Nitride Deep Groove Ceramic Ball Bearing: 6011-SN

Naked Silicon Nitride Deep Groove Ceramic Ball Bearing: 6011-SN

Deep Groove, Single Row, Ceramic, Naked, Si3N4
$477.40
This product has a minimum quantity of 3

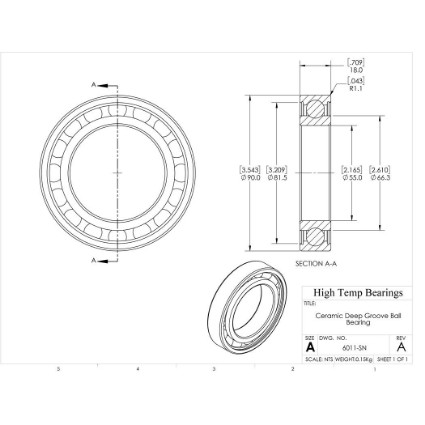

CAD
Specifications:
Attribute nameAttribute value
SeriesSi3N4
SealsNone
Bore (mm)55
D (mm)90
B (mm)18
d1 (mm)66.3
D2 (mm)81.5
C (lb)1591
C0 (lb)1191
Nmax (RPM)6300
Weight(lbs)0.33
Code101315
PackageQTY1
UOMEA
C (kN)7.075
C0 (kN)5.3
Ra (mm)1
Da (mm)84
damin (mm)61
kr25
ka0.25
fo15
r (mm)1.1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open
DutyCeramic
