Sealed Silicon Carbide Deep Groove Ceramic Ball Bearing: 6011-SC2RS

Sealed Silicon Carbide Deep Groove Ceramic Ball Bearing: 6011-SC2RS

Deep Groove, Single Row, Ceramic, Sealed, SiC
$544.13
This product has a minimum quantity of 3

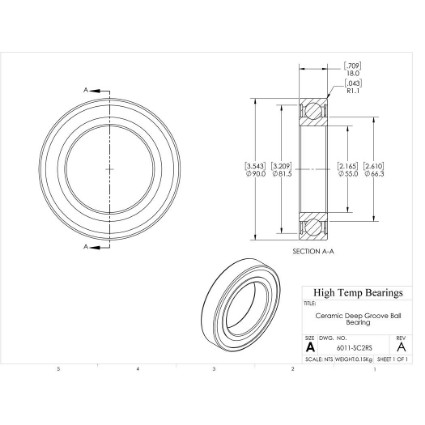

CAD
Specifications:
Attribute nameAttribute value
SeriesSiC
SealsSeals
Bore (mm)55
D (mm)90
B (mm)18
d1 (mm)66.3
D2 (mm)81.5
C (lb)1272
C0 (lb)953
Nmax (RPM)5400
Weight(lbs)0.33
Code101313
PackageQTY1
UOMEA
C (kN)5.66
C0 (kN)4.24
Ra (mm)1
Da (mm)84
damin (mm)61
kr25
ka0.25
fo15
r (mm)1.1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
