800°C Silicon Nitride Deep Groove Ball Bearing: 6010-SNF

800°C Silicon Nitride Deep Groove Ball Bearing: 6010-SNF

Deep Groove, Full Complement, Single Row, High Temp 800 C,Si3N4
$327.25
This product has a minimum quantity of 5

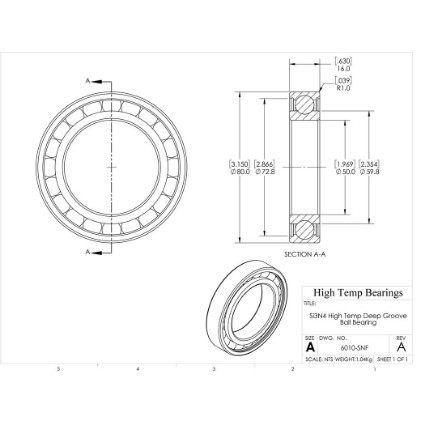

CAD
Specifications:
Attribute nameAttribute value
Construction1472F Open
Bore (mm)50
D (mm)80
B (mm)16
d1 (mm)59.8
D2 (mm)72.8
C (lb)1225
C0 (lb)933
Nmax (RPM)4851
Weight(lbs)2.3
Code270021
PackageQTY1
UOMEA
SeriesSi3N4
C (kN)5.45
C0 (kN)4.15
Ra (mm)1
Da (mm)75.4
damin (mm)54.6
kr25
ka0.25
fo15
r (mm)1
SealsNone
Clearance0.0005"
Tmax (F)1472
Tmin (F)-112
DutyHigh Temperature
