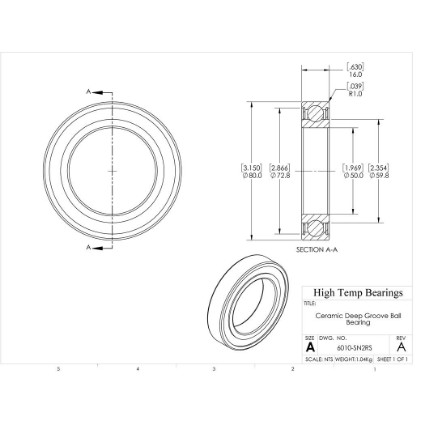

Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6010-SN2RS

Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6010-SN2RS

Deep Groove, Single Row, Ceramic, Sealed Si3N4 Ball Bearing
$426.66
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

CAD
Specifications:
Attribute nameAttribute value
MaterialSi3N4
SealsSeals
Shaft Size50mm
D (mm)80
B (mm)16
d1 (mm)59.8
D2 (mm)72.8
C (lb)1225
C0 (lb)933
Nmax (RPM)6930
Weight(lbs)2.3
Code101304
PackageQTY1
UOMEA
Bore (mm)50
C (kN)5.45
C0 (kN)4.15
Ra (mm)1
Da (mm)75.4
damin (mm)54.6
kr25
ka0.25
fo15
r (mm)1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
SeriesSi3N4
Sealed units are protected from liquids, vapors, and fine dust, have excellent grease retention but have increased friction compared to shielded and open bearings. Silicon Nitride has a good combination of mechanical, thermal, and electrical properties. It is extremely hard and has exceptional thermal shock, impact resistance, and high-temperature capabilities, with high creep, oxidation, and wear resistance but is exceptionally light in weight. Its low thermal and electrical conductivity is especially useful in applications where corrosion, electric or magnetic fields prohibit the use of metals. It is an excellent choice when high-temperature and high-load abilities are needed. However, it has a very low rate of thermal expansion that must be accommodated to prevent excessive tensile stress on the inner race.
