Open Silicon Nitride Deep Groove Ceramic Ball Bearing: 6010-SN

Open Silicon Nitride Deep Groove Ceramic Ball Bearing: 6010-SN

Deep Groove, Single Row, Ceramic, Open, Si3N4
$328.53

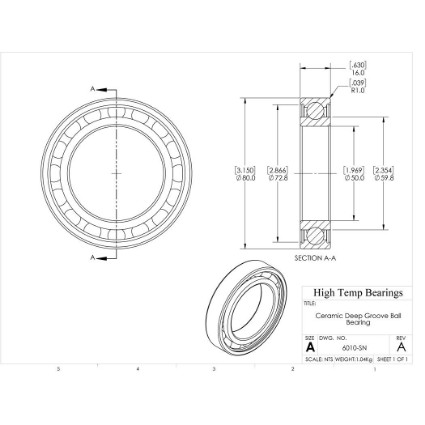

CAD
Specifications:
Attribute nameAttribute value
SeriesSi3N4
SealsNone
Bore (mm)50
D (mm)80
B (mm)16
d1 (mm)59.8
D2 (mm)72.8
C (lb)1225
C0 (lb)933
Nmax (RPM)6930
Weight(lbs)2.3
Code101303
PackageQTY1
UOMEA
C (kN)5.45
C0 (kN)4.15
Ra (mm)1
Da (mm)75.4
damin (mm)54.6
kr25
ka0.25
fo15
r (mm)1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open Ceramic
DutyCeramic
