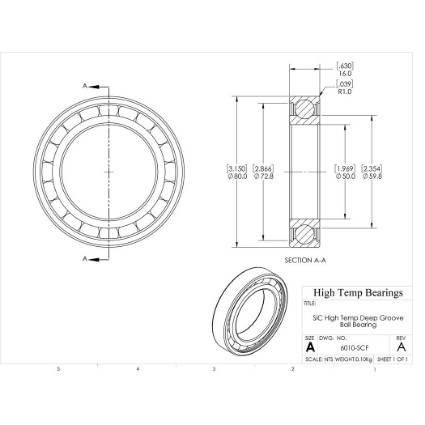

1200°C Silicon Carbide Deep Groove Ball Bearing: 6010-SCF

1200°C Silicon Carbide Deep Groove Ball Bearing: 6010-SCF

Deep Groove, Full Complement, Single Row, High Temp 1200 C,SiC
$346.50
This product has a minimum quantity of 5
CAD
Specifications:
Attribute nameAttribute value
Construction2192F Open
Bore (mm)50
D (mm)80
B (mm)16
d1 (mm)59.8
D2 (mm)72.8
C (lb)980
C0 (lb)746
Nmax (RPM)4158
Weight(lbs)0.23
Code270020
PackageQTY1
UOMEA
SeriesSiC
C (kN)4.36
C0 (kN)3.32
Ra (mm)1
Da (mm)75.4
damin (mm)54.6
kr25
ka0.25
fo15
r (mm)1
SealsNone
Clearance0.0005"
Tmax (F)2192
Tmin (F)-112
DutyHigh Temperature
