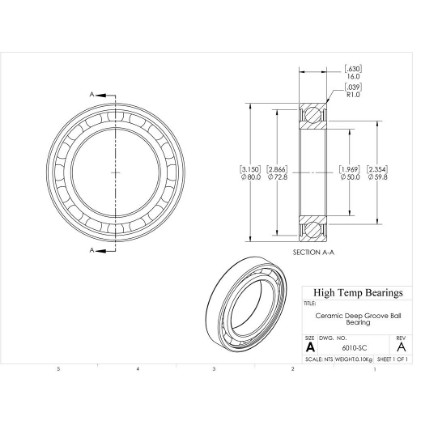

Naked Silicon Carbide Deep Groove Ceramic Ball Bearing: 6010-SC

Naked Silicon Carbide Deep Groove Ceramic Ball Bearing: 6010-SC

Deep Groove, Single Row, Ceramic, Naked, SiC
$459.43
This product has a minimum quantity of 3
CAD
Specifications:
Attribute nameAttribute value
SeriesSiC
SealsNone
Bore (mm)50
D (mm)80
B (mm)16
d1 (mm)59.8
D2 (mm)72.8
C (lb)980
C0 (lb)746
Nmax (RPM)5940
Weight(lbs)0.23
Code101301
PackageQTY1
UOMEA
C (kN)4.36
C0 (kN)3.32
Ra (mm)1
Da (mm)75.4
damin (mm)54.6
kr25
ka0.25
fo15
r (mm)1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open
DutyCeramic
