400°C Zirconium Oxide Deep Groove Ball Bearing: 6009-ZOF

400°C Zirconium Oxide Deep Groove Ball Bearing: 6009-ZOF

Deep Groove, Full Complement, Single Row, High Temp 400 C, ZrO2
$187.37
This product has a minimum quantity of 5

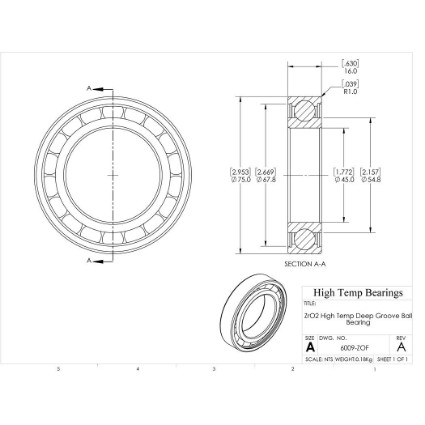

CAD
Specifications:
Attribute nameAttribute value
Construction752F Open
Bore (mm)45
D (mm)75
B (mm)16
d1 (mm)54.8
D2 (mm)67.8
C (lb)1416
C0 (lb)1018
Nmax (RPM)4620
Weight(lbs)0.41
Code101295
PackageQTY1
UOMEA
SeriesZrO2
C (kN)6.3
C0 (kN)4.53
Ra (mm)1
Da (mm)69.2
damin (mm)50.8
kr25
ka0.25
fo15
r (mm)1
SealsNone
Clearance0.0005"
Tmax (F)752
Tmin (F)-112
DutyHigh Temperature
