Sealed Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6009-ZO2RS

Sealed Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6009-ZO2RS

Deep Groove, Single Row, Ceramic, Sealed ZrO2 Ball Bearing
$240.00
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

CAD
Specifications:
Description
Sealed units are protected from liquids, vapors, and fine dust, have excellent grease retention but have increased friction compared to shielded and open bearings. Sealed units are protected from liquids, vapors, and fine dust, have excellent grease retention but have increased friction compared to shielded and open bearings. Zirconia offers high strength, wear resistance, and flexibility. It has a superior surface hardness, the highest level of impact toughness for a bearing grade ceramic, corrosion resistance, elastic modulus and thermal expansion similar to bearing steel, and good high-temperature performance. It has low thermal conductivity, is electrically non-conductive and non-magnetizing, making it a suitable material to replace metals in many applications where isolation is essential. One notable weakness is high-temperature steam will degrade Zirconia.
Attribute nameAttribute value
Product Information
Attribute nameAttribute value
Code101294
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
SealsSeals
DutyCeramic
Construction482F Seals Ceramic
SeriesZrO2
Shaft Size45mm
MaterialZrO2

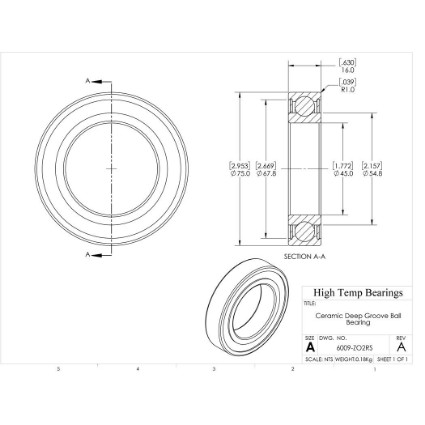

Dimensions
Attribute nameAttribute value
Bore (mm)45
D (mm)75
B (mm)16
r (mm)1
D2 (mm)67.8
d1 (mm)54.8
Abutment Dimensions
Attribute nameAttribute value
Ra (mm)1
Da (mm)69.2
damin (mm)50.8
Calculation Data
Attribute nameAttribute value
Nmax (RPM)Limiting speed6600
krMinimum radial load factor25
kaMinimum axial load factor0.25
foCalculation factor15
C (lb)Dynamic load capacity1416
C0 (lb)Static load capacity1018
Mass
Attribute nameAttribute value
Weight(lbs)0.41
Tolerance Class
Attribute nameAttribute value
Clearance0.0005"
Safe Loads
Attribute nameAttribute value
Tmax (F)482
Tmin (F)-94
