Naked Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6009-ZO

Naked Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6009-ZO

Deep Groove, Single Row, Ceramic, Naked, ZrO2
$184.80

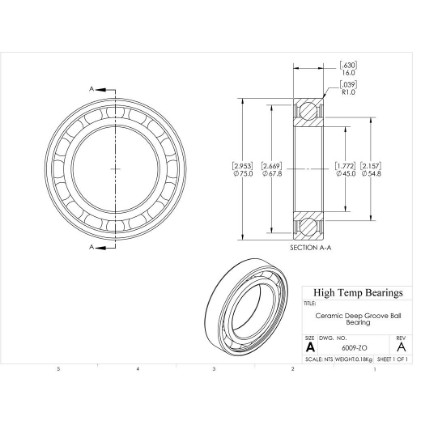

CAD
Specifications:
Attribute nameAttribute value
SeriesZrO2
SealsNone
Bore (mm)45
D (mm)75
B (mm)16
d1 (mm)54.8
D2 (mm)67.8
C (lb)1416
C0 (lb)1018
Nmax (RPM)6600
Weight(lbs)0.41
Code101293
PackageQTY1
UOMEA
C (kN)6.3
C0 (kN)4.53
Ra (mm)1
Da (mm)69.2
damin (mm)50.8
kr25
ka0.25
fo15
r (mm)1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open
DutyCeramic
