Naked Silicon Nitride Deep Groove Ceramic Ball Bearing: 6009-SN

Naked Silicon Nitride Deep Groove Ceramic Ball Bearing: 6009-SN

Deep Groove, Single Row, Ceramic, Naked, Si3N4
$320.83

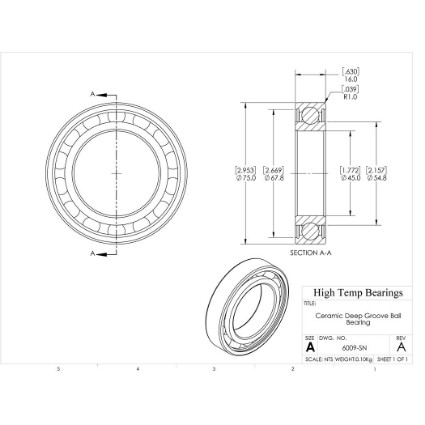

CAD
Specifications:
Attribute nameAttribute value
SeriesSi3N4
SealsNone
Bore (mm)45
D (mm)75
B (mm)16
d1 (mm)54.8
D2 (mm)67.8
C (lb)1180
C0 (lb)849
Nmax (RPM)7700
Weight(lbs)0.22
Code101291
PackageQTY1
UOMEA
C (kN)5.25
C0 (kN)3.775
Ra (mm)1
Da (mm)69.2
damin (mm)50.8
kr25
ka0.25
fo15
r (mm)1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open
DutyCeramic
