1200°C Silicon Carbide Deep Groove Ball Bearing: 6009-SCF

1200°C Silicon Carbide Deep Groove Ball Bearing: 6009-SCF

Deep Groove, Full Complement, Single Row, High Temperature 1200 °C SiC Ball Bearing
$338.80
This product has a minimum quantity of 5
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

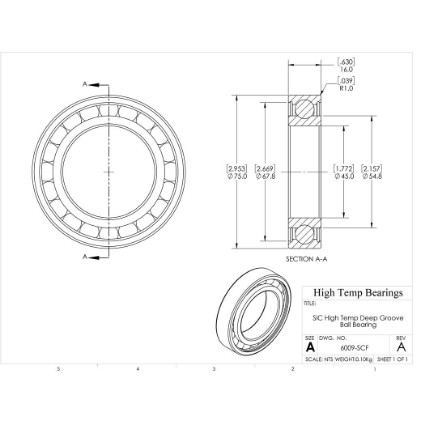

CAD
Specifications:
Attribute nameAttribute value
Construction2192F Open
Bore (mm)45
D (mm)75
B (mm)16
d1 (mm)54.8
D2 (mm)67.8
C (lb)944
C0 (lb)679
Nmax (RPM)4620
Weight(lbs)0.22
Code101290
PackageQTY1
UOMEA
C (kN)4.2
C0 (kN)3.02
Ra (mm)1
Da (mm)69.2
damin (mm)50.8
kr25
ka0.25
fo15
r (mm)1
Clearance0.0005"
Tmax (F)2192
Tmin (F)-112
DutyHigh Temperature
SealsNone
SeriesSiC
