Sealed Silicon Carbide Deep Groove Ceramic Ball Bearing: 6009-SC2RS

Sealed Silicon Carbide Deep Groove Ceramic Ball Bearing: 6009-SC2RS

Deep Groove, Single Row, Ceramic, Sealed SiC Ball Bearing
$341.37
This product has a minimum quantity of 3
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

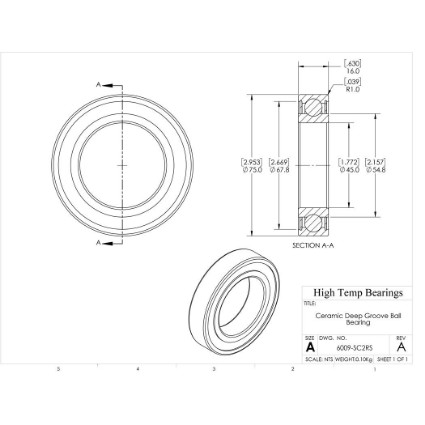

CAD
Specifications:
Attribute nameAttribute value
SeriesSiC
SealsSeals
Bore (mm)45
D (mm)75
B (mm)16
d1 (mm)54.8
D2 (mm)67.8
C (lb)944
C0 (lb)679
Nmax (RPM)6600
Weight(lbs)0.22
Code101289
PackageQTY1
UOMEA
C (kN)4.2
C0 (kN)3.02
Ra (mm)1
Da (mm)69.2
damin (mm)50.8
kr25
ka0.25
fo15
r (mm)1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
