400°C Zirconium Oxide Deep Groove Ball Bearing: 6008-ZOF

400°C Zirconium Oxide Deep Groove Ball Bearing: 6008-ZOF

Deep Groove, Full Complement, Single Row, High Temp 400 C, ZrO2
$125.77
This product has a minimum quantity of 5

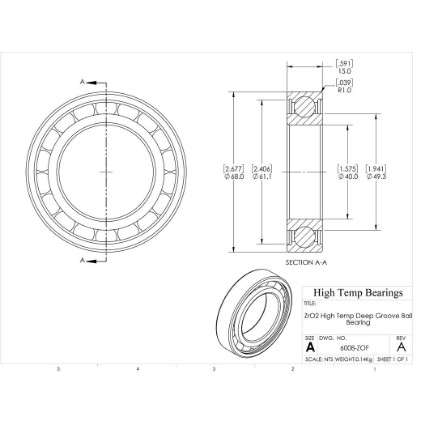

CAD
Specifications:
Attribute nameAttribute value
Construction752F Open
Bore (mm)40
D (mm)68
B (mm)15
d1 (mm)49.3
D2 (mm)61.1
C (lb)1126
C0 (lb)776
Nmax (RPM)5040
Weight(lbs)0.32
Code270018
PackageQTY1
UOMEA
SeriesZrO2
C (kN)5.01
C0 (kN)3.45
Ra (mm)1
Da (mm)63.4
damin (mm)44.6
kr25
ka0.25
fo15
r (mm)1
SealsNone
Clearance0.0005"
Tmax (F)752
Tmin (F)-112
DutyHigh Temperature
