800°C Silicon Nitride Deep Groove Ball Bearing: 6008-SNF

800°C Silicon Nitride Deep Groove Ball Bearing: 6008-SNF

Deep Groove, Full Complement, Single Row, High Temp 800 C,Si3N4
$213.80
This product has a minimum quantity of 5

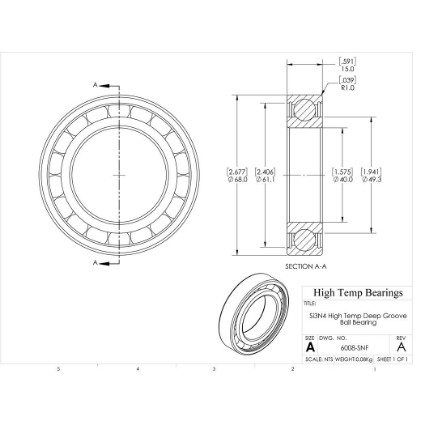

CAD
Specifications:
Attribute nameAttribute value
Construction1472F Open
Bore (mm)40
D (mm)68
B (mm)15
d1 (mm)49.3
D2 (mm)61.1
C (lb)939
C0 (lb)646
Nmax (RPM)5880
Weight(lbs)0.17
Code270017
PackageQTY1
UOMEA
SeriesSi3N4
C (kN)4.175
C0 (kN)2.875
Ra (mm)1
Da (mm)63.4
damin (mm)44.6
kr25
ka0.25
fo15
r (mm)1
SealsNone
Clearance0.0005"
Tmax (F)1472
Tmin (F)-112
DutyHigh Temperature
