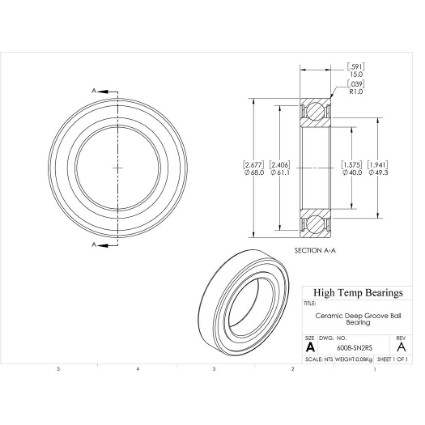

Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6008-SN2RS

Sealed Silicon Nitride Deep Groove Ceramic Ball Bearing: 6008-SN2RS

Deep Groove, Single Row, Ceramic, Sealed, Si3N4
$215.60
CAD
Specifications:
Attribute nameAttribute value
SeriesSi3N4
SealsSeals
Bore (mm)40
D (mm)68
B (mm)15
d1 (mm)49.3
D2 (mm)61.1
C (lb)939
C0 (lb)646
Nmax (RPM)8400
Weight(lbs)0.17
Code101281
PackageQTY1
UOMEA
C (kN)4.175
C0 (kN)2.875
Ra (mm)1
Da (mm)63.4
damin (mm)44.6
kr25
ka0.25
fo15
r (mm)1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
