1200°C Silicon Carbide Deep Groove Ball Bearing: 6008-SCF

1200°C Silicon Carbide Deep Groove Ball Bearing: 6008-SCF

Deep Groove, Full Complement, Single Row, High Temp 1200 C,SiC
$226.38
This product has a minimum quantity of 5

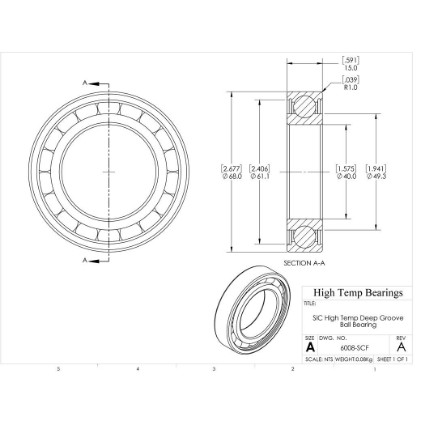

CAD
Specifications:
Attribute nameAttribute value
Construction2192F Open
Bore (mm)40
D (mm)68
B (mm)15
d1 (mm)49.3
D2 (mm)61.1
C (lb)751
C0 (lb)517
Nmax (RPM)5040
Weight(lbs)0.17
Code270016
PackageQTY1
UOMEA
SeriesSiC
C (kN)3.34
C0 (kN)2.3
Ra (mm)1
Da (mm)63.4
damin (mm)44.6
kr25
ka0.25
fo15
r (mm)1
SealsNone
Clearance0.0005"
Tmax (F)2192
Tmin (F)-112
DutyHigh Temperature
