Sealed Silicon Carbide Deep Groove Ceramic Ball Bearing: 6008-SC2RS

Sealed Silicon Carbide Deep Groove Ceramic Ball Bearing: 6008-SC2RS

Deep Groove, Single Row, Ceramic, Sealed, SiC
$225.87
This product has a minimum quantity of 3

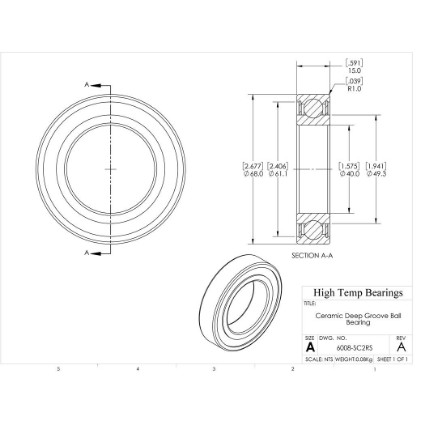

CAD
Specifications:
Attribute nameAttribute value
SeriesSiC
SealsSeals
Bore (mm)40
D (mm)68
B (mm)15
d1 (mm)49.3
D2 (mm)61.1
C (lb)751
C0 (lb)517
Nmax (RPM)7200
Weight(lbs)0.17
Code101279
PackageQTY1
UOMEA
C (kN)3.34
C0 (kN)2.3
Ra (mm)1
Da (mm)63.4
damin (mm)44.6
kr25
ka0.25
fo15
r (mm)1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
DutyCeramic
Construction482F Seals Ceramic
