Open Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6007-ZO

Open Zirconium Oxide Deep Groove Ceramic Ball Bearing: 6007-ZO

Deep Groove, Single Row, Ceramic, Open ZrO2 Ball Bearing
$150.00
This product has a minimum quantity of 2
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

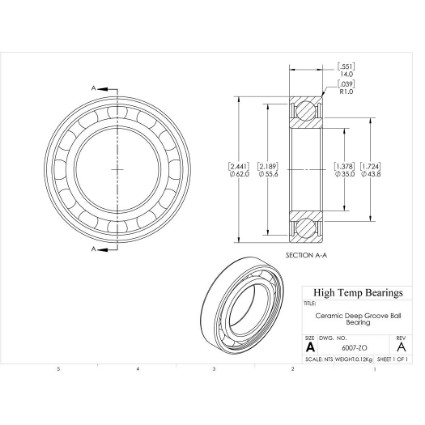

CAD
Specifications:
Attribute nameAttribute value
SeriesZrO2
SealsNone
Shaft Size35mm
D (mm)62
B (mm)14
d1 (mm)43.8
D2 (mm)55.6
C (lb)1072
C0 (lb)695
Nmax (RPM)7800
Weight(lbs)0.26
Code101273
PackageQTY2
UOMEA
Bore (mm)35
C (kN)4.77
C0 (kN)3.09
Ra (mm)1
Da (mm)57.4
damin (mm)39.6
kr25
ka0.25
fo15
r (mm)1
Clearance0.0005"
Tmax (F)482
Tmin (F)-94
Construction482F Open Ceramic
DutyCeramic
Zirconia offers high strength, wear resistance, and flexibility. It has a superior surface hardness, the highest level of impact toughness for a bearing grade ceramic, corrosion resistance, elastic modulus and thermal expansion similar to bearing steel, and good high-temperature performance. It has low thermal conductivity, is electrically non-conductive and non-magnetizing, making it a suitable material to replace metals in many applications where isolation is essential.One notable weakness is high-temperature steam will degrade Zirconia.
