800°C Silicon Nitride Deep Groove Ball Bearing: 6007-SNF

800°C Silicon Nitride Deep Groove Ball Bearing: 6007-SNF

Deep Groove, Full Complement, Single Row, High Temp 800 C,Si3N4
$187.36
This product has a minimum quantity of 5

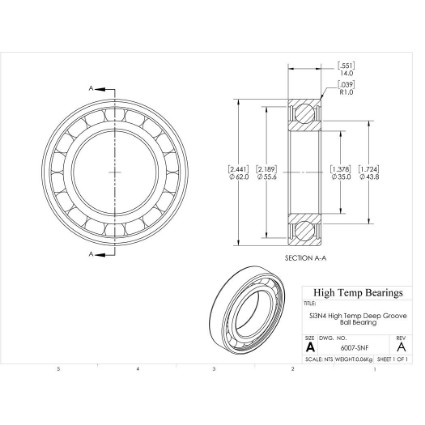

CAD
Specifications:
Attribute nameAttribute value
Construction1472F Open
Bore (mm)35
D (mm)62
B (mm)14
d1 (mm)43.8
D2 (mm)55.6
C (lb)894
C0 (lb)579
Nmax (RPM)6370
Weight(lbs)0.14
Code270889
PackageQTY1
UOMEA
SeriesSi3N4
C (kN)3.975
C0 (kN)2.575
Ra (mm)1
Da (mm)57.4
damin (mm)39.6
kr25
ka0.25
fo15
r (mm)1
SealsNone
Clearance0.0005"
Tmax (F)1472
Tmin (F)-112
DutyHigh Temperature
